Harley FLH Wiring Diagram – Simplified Guide for Riders
Owning a Harley-Davidson FLH is a dream for many. The iconic lines, powerful engine, and rumble of the exhaust define a classic American experience. However, the intricate electrical systems can sometimes feel like a complex maze. Understanding your Harley FLH’s wiring is crucial for troubleshooting electrical issues, performing modifications, and ensuring your bike runs smoothly. This guide simplifies the often-daunting task of navigating the FLH wiring diagram, providing riders with the knowledge they need.
What is a Harley FLH Wiring Diagram?

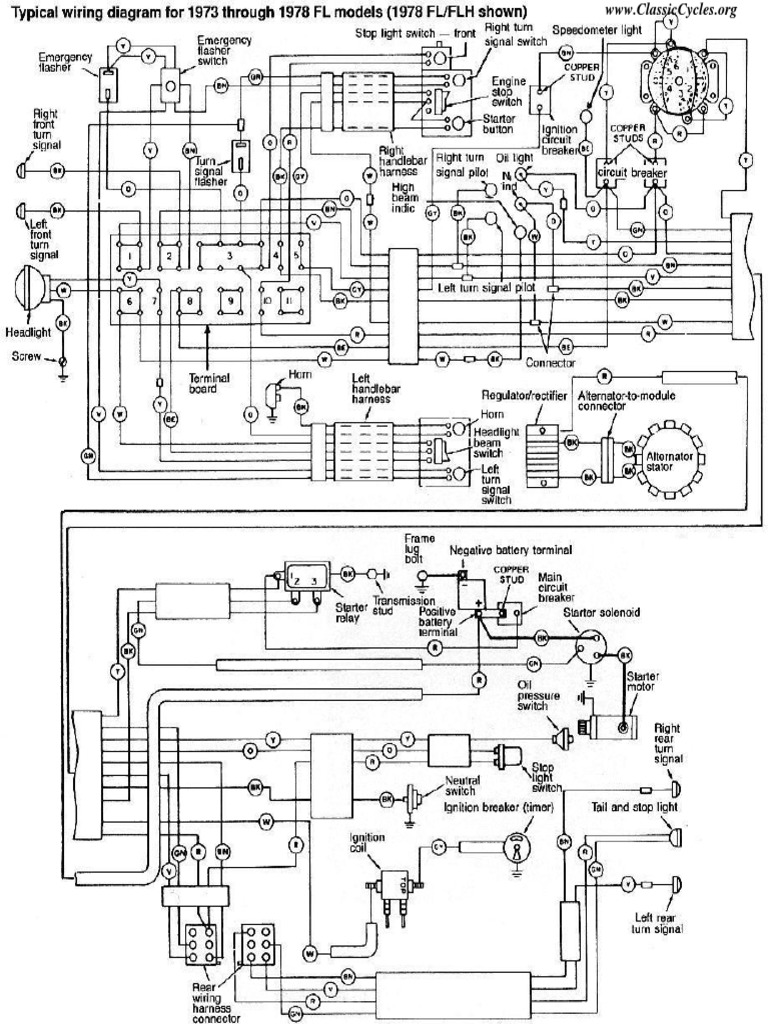

A Harley FLH wiring diagram is a visual representation of the electrical circuits within your motorcycle. It’s essentially a roadmap showing how wires, fuses, switches, sensors, and other electrical components connect to each other. The diagram uses standardized symbols and color-coded wires to help you trace the flow of electricity throughout the bike. Think of it as the blueprint for your Harley’s electrical system.
Why is Understanding the Wiring Diagram Important?
Knowing how to read and use the wiring diagram is invaluable for several reasons:
- Troubleshooting Electrical Problems: Diagnosing and fixing electrical faults like flickering lights, non-functioning components, or starting issues becomes significantly easier with a diagram.
- Performing Modifications: Whether you’re adding new lights, installing a custom sound system, or upgrading your ignition system, the wiring diagram helps you safely integrate these modifications.
- Preventing Damage: Understanding the circuits helps you avoid short circuits and other electrical mishaps that could damage your bike’s components or even pose a safety hazard.
- Understanding Your Bike: It provides a deeper understanding of how your Harley functions electrically, enhancing your overall riding and maintenance experience.
Key Components of a Harley FLH Wiring Diagram
Familiarizing yourself with the common components and symbols used in the diagram is essential. Here’s a breakdown:
- Wire Colors: Wires are color-coded to identify specific circuits. Common colors include:
- Black: Ground
- Red: Battery power (usually unfused)
- Orange: Ignition power
- Blue: Headlight
- Green: Turn signals
- Yellow: Brake lights
- Symbols: Standardized symbols represent various components:
- Fuses: Small rectangles with a rating (e.g., 15A).
- Switches: Represented by their function (e.g., a switch for the headlight).
- Lights: Circles with a symbol indicating the type of light (e.g., a small lightbulb for a headlight).
- Connectors: Small squares or rectangles showing where wires connect.
- Ground Points: Small triangles or circles indicating where wires connect to the frame or engine for grounding.
- Circuits: The diagram organizes the electrical system into various circuits, such as:
- Charging System: Includes the stator, regulator/rectifier, and battery.
- Ignition System: Includes the ignition coil, spark plugs, and ignition module.
- Lighting System: Includes headlights, tail lights, turn signals, and running lights.
- Starting System: Includes the starter motor, solenoid, and starter button.
Where to Find Your Harley FLH Wiring Diagram
Several resources offer access to your Harley FLH wiring diagram:
- Factory Service Manual: This is the most comprehensive and reliable source. It includes detailed diagrams, troubleshooting guides, and maintenance procedures.
- Online Forums and Communities: Many Harley-Davidson enthusiast forums offer downloadable diagrams, often tailored to specific model years.
- Online Parts Stores: Some online parts retailers provide wiring diagrams for specific models and years.
- Haynes or Clymer Manuals: These aftermarket manuals often include wiring diagrams and are a more affordable alternative to the factory service manual.
Tips for Using the Wiring Diagram Effectively
- Identify Your Model Year: Ensure you’re using the correct diagram for your specific FLH model year, as electrical systems can change significantly.
- Start Simple: Begin by understanding the basic circuits, such as the lighting and starting systems, before tackling more complex areas.
- Use a Digital Multimeter (DMM): A DMM is an essential tool for testing voltage, continuity, and resistance, which helps you diagnose electrical problems.
- Follow the Wire Colors: Use the color-coding to trace wires and identify connections.
- Take Your Time: Electrical work can be time-consuming. Don’t rush the process.
- Consult Professionals: If you’re uncomfortable with electrical work, consider consulting a qualified motorcycle mechanic.
Troubleshooting Common Electrical Issues
Here are some common electrical problems you might encounter and how the wiring diagram can help:
- Lights Not Working: Use the diagram to trace the power supply to the light, check the fuse, and inspect the bulb and switch.
- Bike Won’t Start: Check the starter motor circuit, the ignition system, and the battery connections.
- Fuses Blowing: Identify the circuit the fuse protects and look for a short circuit or overloaded component.
- Charging Problems: Use the diagram to check the charging system components, including the stator, regulator/rectifier, and battery connections.
Conclusion
Mastering the Harley FLH wiring diagram is a valuable skill for any rider. By understanding the components, symbols, and circuits, you can confidently troubleshoot electrical issues, perform modifications, and keep your Harley running smoothly. With the right resources and a little patience, you can unlock the secrets of your bike’s electrical system and enhance your riding experience.
FAQs
- Where can I find a wiring diagram for my specific FLH model year? The best place to start is the factory service manual for your Harley. You can also find diagrams online through Harley-Davidson enthusiast forums or online parts stores.
- What tools do I need to work with the wiring diagram? A basic toolkit including wire strippers, crimpers, a digital multimeter (DMM), and a good set of screwdrivers is essential.
- Is it safe to work on my Harley’s electrical system myself? If you have experience with electrical work and feel comfortable following instructions, it’s generally safe. However, if you’re unsure, it’s always best to consult a qualified motorcycle mechanic.
- What should I do if I find a wire that’s been cut or damaged? Carefully inspect the wire to determine the extent of the damage. Replace the damaged section of wire with a new wire of the same gauge and color, ensuring secure connections using crimp connectors or soldering.
- Can I modify the wiring on my Harley without voiding the warranty? Modifying the wiring can potentially void the warranty. Always consult with your dealer or review your warranty terms before making any electrical modifications.
