Mazda 3 Rear Brake Caliper Compression – A Step-by-Step Guide

Is your Mazda 3’s brake pedal feeling spongy? Are you planning a brake pad replacement and staring down the barrel of those rear calipers? Compressing the rear brake caliper piston is a crucial step in this process, and it’s often more involved than the front. This comprehensive guide will walk you through the proper techniques for compressing your Mazda 3’s rear brake calipers, ensuring a smooth and safe brake pad replacement. We’ll break down each step clearly, empowering you to tackle this task with confidence and get you back on the road with reliable stopping power.

What Makes Rear Caliper Compression Different?

Unlike front calipers, many rear calipers, including those found on the Mazda 3, utilize a screw-in mechanism. This means you can’t simply push the piston back in like you can with front calipers. This design is often coupled with an integrated parking brake mechanism, which adds another layer of complexity. Forcing the piston back without the correct method can damage the caliper, leading to costly repairs.

Tools and Materials You’ll Need:

Before you begin, gather the following essential tools and materials:

• New Brake Pads: Always replace your brake pads with a matching set.
• Brake Caliper Compression Tool (Screw-in Type): This is crucial! A specialized tool designed for screw-in rear calipers. Generic piston compression tools won’t work.
• Wrench or Socket Set: To remove and replace the caliper bolts.
• Torque Wrench: For tightening bolts to the manufacturer’s specifications.
• Jack and Jack Stands: For safely lifting and supporting the vehicle.
• Wheel Chocks: For added safety.
• Gloves: To protect your hands.
• Safety Glasses: To protect your eyes.
• Brake Cleaner: To clean the caliper and surrounding area.
• Brake Fluid (DOT 3 or DOT 4): For topping up your brake fluid reservoir. (Check your owner’s manual for the correct type.)
• Container for Catching Brake Fluid: To prevent spills and environmental contamination.
• Shop Towels: For cleaning and wiping.
• Penetrating Oil (optional): May be helpful if bolts are corroded.

Step-by-Step Guide to Compressing Your Mazda 3 Rear Brake Calipers:

Follow these steps carefully to ensure a successful and safe brake pad replacement:

1. Safety First: Prepare the Vehicle:

   • Park your Mazda 3 on a level surface.
   • Engage the parking brake.
   • Chock the front wheels securely.
   • Loosen the lug nuts on the rear wheels you’ll be working on.
   • Jack up the vehicle and secure it with jack stands, ensuring the vehicle is stable.
   • Remove the wheels.

2. Locate the Caliper:

   • The rear brake calipers are located behind the rear brake rotors (the large, circular discs).

3. Detach the Caliper:

   • Locate the caliper bolts (usually two).
   • Use a wrench or socket to remove these bolts.
   • Carefully detach the caliper from the brake rotor. Be gentle and avoid kinking the brake line.
   • Hang the caliper securely using a bungee cord or wire, so it doesn’t put stress on the brake line. Never let the caliper hang by the brake hose.

4. Remove the Old Brake Pads:

   • Remove the old brake pads from the caliper bracket.

5. Prepare for Caliper Compression:

   • Clean the caliper piston face with brake cleaner.

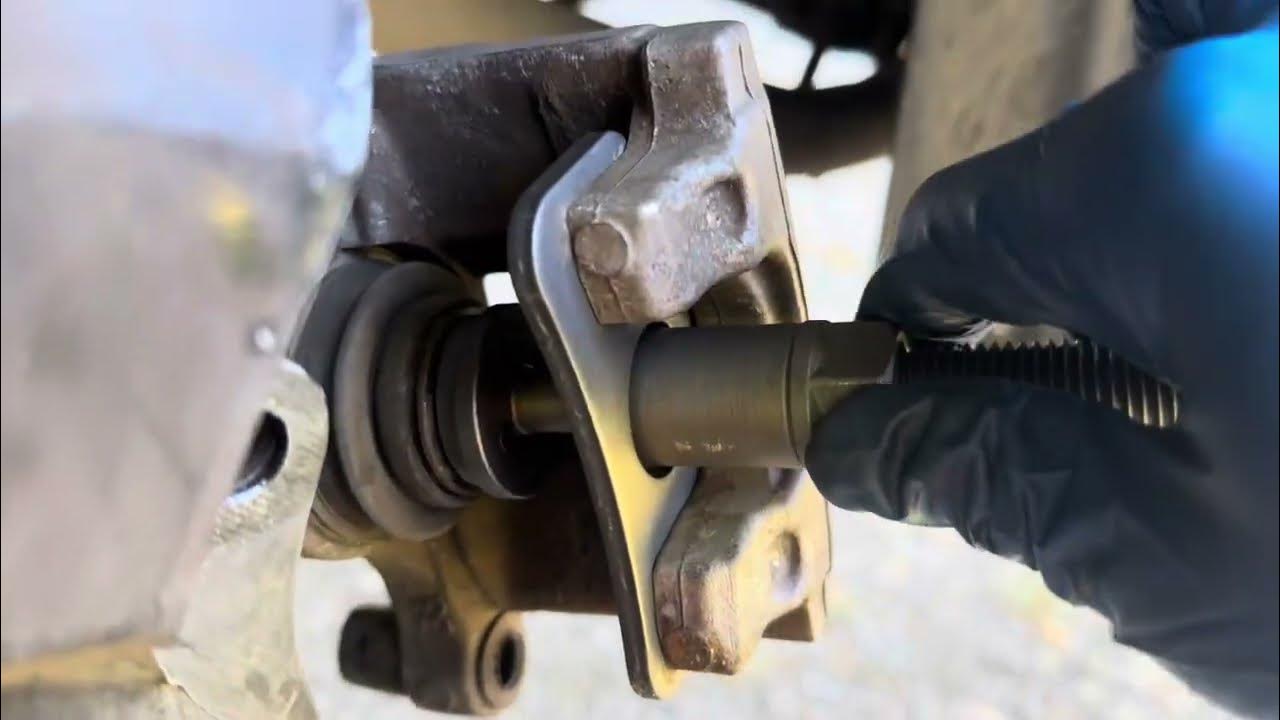

   • Crucially, you’ll need the correct screw-in type brake caliper compression tool. This tool typically has a rotating head with pins or plates designed to engage the piston and a threaded shaft for turning.

6. Compress the Caliper Piston:

   • Position the compression tool’s rotating head onto the piston.
   • Engage the pins or plates of the tool with the piston.
   • Using the tool’s handle, slowly and steadily rotate the piston back into the caliper body. Do not force it.
   • As you rotate, the piston should retract smoothly.
   • Continue rotating until the piston is fully retracted, providing enough space for the new, thicker brake pads.

7. Install the New Brake Pads:

   • Place the new brake pads into the caliper bracket.

8. Reinstall the Caliper:

   • Carefully position the caliper over the new brake pads.
   • Align the caliper with the rotor and bolt it back into place.
   • Tighten the caliper bolts to the manufacturer’s specified torque (consult your repair manual).

9. Reinstall the Wheel:

   • Reinstall the wheel and tighten the lug nuts by hand.
   • Lower the vehicle.
   • Torque the lug nuts to the manufacturer’s specifications.

10. Check and Top Up Brake Fluid:

    • Open the brake fluid reservoir (usually under the hood).
    • Check the brake fluid level. You may need to top it up.
    • Use the correct type of brake fluid (DOT 3 or DOT 4). Wipe up any spills immediately.

11. Final Steps and Testing:

    • Pump the brake pedal several times until it feels firm. This will help seat the new brake pads.
    • Check for any leaks around the caliper.
    • Test the brakes at low speeds in a safe area before driving on public roads.
    • After a few days of normal driving, recheck the brake fluid level and the caliper bolts.

H3: Important Considerations and Potential Challenges:

• Parking Brake Mechanism: The screw-in design often incorporates the parking brake mechanism. This means the piston is both compressed and turned to retract it.
• Corrosion: Rust and corrosion can make removing caliper bolts difficult. Consider using penetrating oil if needed.
• Brake Fluid Contamination: Be mindful of brake fluid spills. Brake fluid can damage paint.
• Proper Tool Usage: Using the wrong tool can damage the caliper and prevent proper braking.
• Torque Specifications: Always tighten bolts to the manufacturer’s specified torque. Over-tightening can damage components, while under-tightening can lead to failure.

Conclusion:

Compressing your Mazda 3 rear brake calipers is a manageable task when approached systematically. By following these step-by-step instructions, utilizing the correct tools, and prioritizing safety, you can successfully replace your brake pads and maintain optimal braking performance. Remember to consult your owner’s manual or a repair manual for specific torque specifications and any model-specific instructions. Taking the time to do the job right ensures your safety and the longevity of your braking system.

Frequently Asked Questions (FAQs):

1. What type of brake fluid should I use in my Mazda 3?

   • Refer to your owner’s manual. Most Mazda 3 models require DOT 3 or DOT 4 brake fluid.

2. Can I just push the rear caliper piston back in like the front ones?

   • No. Most Mazda 3 rear calipers use a screw-in mechanism. Using the wrong method can damage the caliper.

3. What if the caliper piston won’t retract?

   • Make sure you’re using the correct screw-in type tool. Check for corrosion or debris preventing movement. If the piston still won’t move, you may need to replace the caliper.

4. How tight should I tighten the caliper bolts?

   • Always consult your repair manual for the correct torque specifications for your Mazda 3 model. Over-tightening or under-tightening can cause problems.

5. Can I reuse the old brake pads?

   • It’s strongly recommended to replace your brake pads whenever you replace your brake rotors. Old pads may not seat properly on new rotors.
