Triumph TR6 Frame: Specs, Strength & Restoration Guide

The Triumph TR6, a British sports car icon, captivated enthusiasts with its raw power, classic lines, and open-top driving experience. However, beneath the alluring exterior lies a crucial component – the frame. This article delves into the specifications, strength, and restoration considerations of the TR6 frame, providing valuable insights for owners, restorers, and those considering acquiring this vintage beauty. Understanding the frame is paramount to ensuring the longevity and safety of your TR6.

Understanding the Triumph TR6 Frame

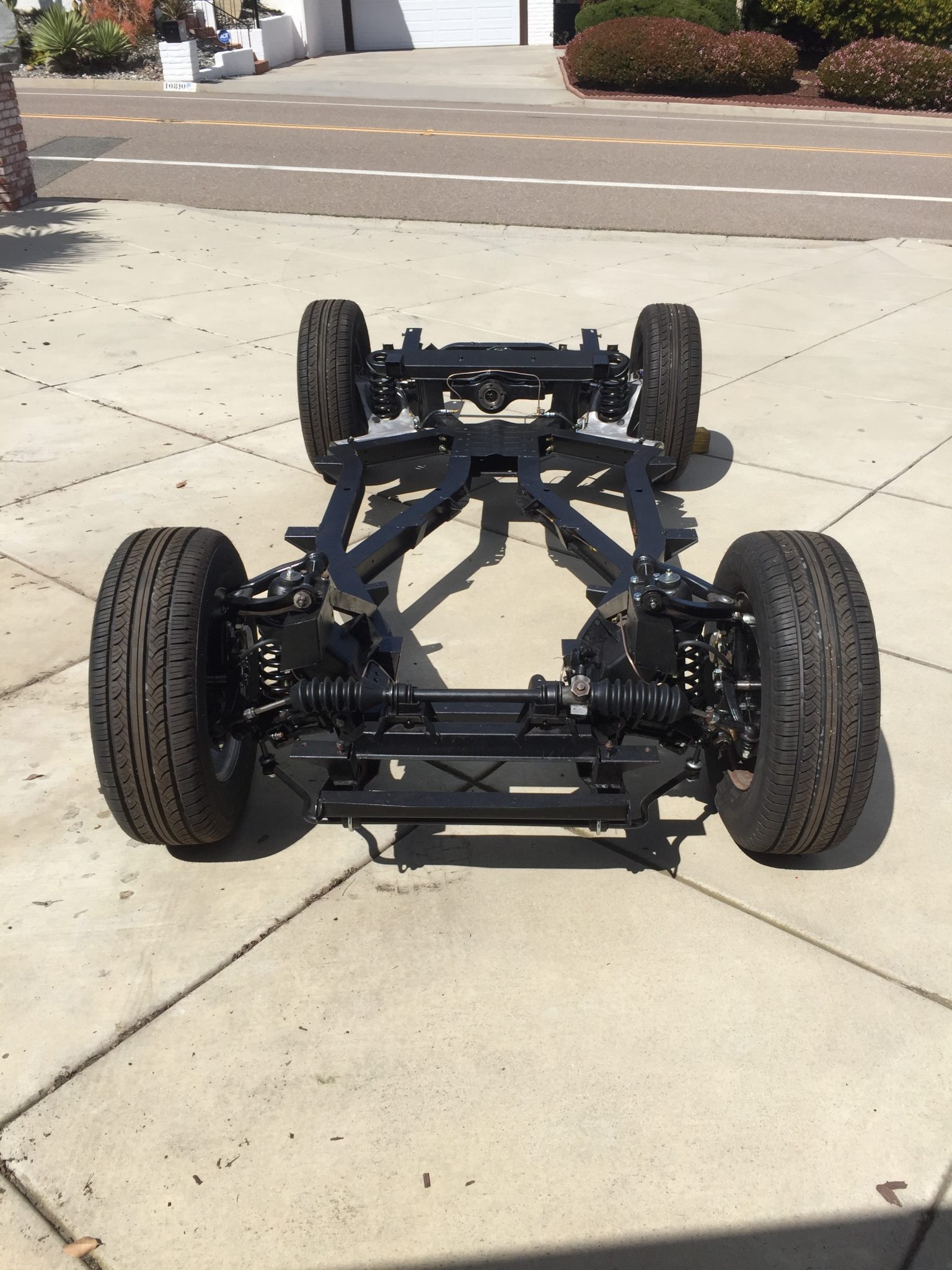

The TR6’s chassis, a crucial part of its structural integrity, is a separate, ladder-type frame. This design, common in older vehicles, provides several advantages and disadvantages.

• Advantages:
  • Relatively simple construction, making it easier to repair and restore.
  • Allows for flexibility in body design, as the body isn’t integral to the structural strength.
  • Good for absorbing road imperfections, contributing to a more comfortable ride (to a degree!).
• Disadvantages:
  • Can be prone to rust and corrosion, especially in vulnerable areas.
  • Not as torsionally rigid as a modern unibody construction.
  • Adds weight to the vehicle.

The TR6 frame served as the foundation for the car’s suspension, engine, transmission, and body panels, making its condition critical to the car’s overall performance and safety.

Triumph TR6 Frame Specifications

Knowing the specifications of the TR6 frame is essential for accurate restoration and identifying potential issues. Key specifications to consider include:

• Type: Ladder-type frame, consisting of parallel longitudinal rails connected by cross members.
• Material: Primarily constructed from steel, varying in thickness and grade depending on the specific component.
• Construction: Welded construction, with various gussets and reinforcements added for strength.
• Key Dimensions: While specific dimensions vary slightly between model years, understanding the overall length, width, and critical mounting points is crucial for accurate restoration. Consult original factory manuals or reputable restoration guides for precise measurements.
• Suspension Mounting Points: These are crucial and often subject to wear and tear. Pay close attention to the condition of these points during inspection.

Strength and Durability of the TR6 Frame

The TR6 frame, while robust for its time, is susceptible to degradation over the years, particularly due to rust. The frame’s strength and durability are influenced by several factors:

• Material Quality: The grade and thickness of the steel used in the frame play a significant role in its strength and resistance to corrosion.
• Welding Quality: Proper welding is essential for the frame’s structural integrity. Poor welds can lead to cracks and failure.
• Corrosion Protection: Original factory protection was often inadequate, leaving the frame vulnerable to rust.
• Stress and Load: The frame is subjected to various stresses during driving, including twisting, bending, and impact loads.

Common areas of concern for rust and corrosion include:

• Floor pans: The areas where the floor pans meet the frame.
• Suspension mounting points: These areas are exposed to road spray and often subject to significant stress.
• Cross members: These can trap moisture and accelerate corrosion.
• Trailing arm mounts: These are prone to stress cracks and rust.

Triumph TR6 Frame Restoration Guide

Restoring a TR6 frame is a significant undertaking, but it’s crucial for preserving the car’s value and ensuring its safety. The restoration process typically involves several key stages:

1. Assessment and Inspection:
   • Thoroughly inspect the frame for rust, cracks, and damage.
   • Use a hammer and chisel to test the metal’s integrity in suspect areas.
   • Document any damage with photographs and measurements.
2. Disassembly:
   • Remove all components attached to the frame, including the engine, transmission, suspension, body panels, and wiring.
   • Carefully label and store all removed parts.
3. Cleaning and Preparation:
   • Remove all rust, paint, and undercoating.
   • Methods include sandblasting, media blasting, or chemical stripping.
   • Repair any damaged areas by welding in new metal or reinforcing existing sections.
4. Welding and Fabrication:
   • If you’re not proficient in welding, consider hiring a professional.
   • Use high-quality welding equipment and materials.
   • Ensure all welds are strong and visually appealing.
5. Rust Protection and Painting:
   • Apply a rust converter or primer to prevent future corrosion.
   • Consider using a durable epoxy primer and topcoat.
   • Apply undercoating to protect vulnerable areas.
6. Reassembly:
   • Carefully reassemble all components, referring to your documentation and service manuals.
   • Ensure all bolts are tightened to the correct torque specifications.

Important Considerations during Restoration:

• Professional Help: Don’t hesitate to seek professional help for welding, sandblasting, and painting.
• Safety: Always wear appropriate safety gear, including eye protection, gloves, and a respirator.
• Documentation: Keep detailed records of all work performed, including photographs and measurements.
• Parts Availability: Research the availability of replacement parts, such as repair panels, before starting the project.

Conclusion

The Triumph TR6 frame is a fundamental component of this iconic sports car. Understanding its specifications, recognizing its vulnerabilities, and undertaking a thorough restoration are crucial for preserving its value and ensuring its safe operation. By following the guidelines outlined in this article, you can confidently assess, restore, and enjoy the timeless appeal of your Triumph TR6 for years to come.

Frequently Asked Questions (FAQs)

1. How much does it cost to restore a TR6 frame? The cost of frame restoration can vary significantly depending on the extent of the damage, the labor rates in your area, and the materials used. It’s best to obtain quotes from multiple restoration shops or estimate the cost of materials and tools if you’re doing the work yourself. Expect to spend anywhere from a few thousand dollars up to $10,000 or more for a full restoration.
2. Where can I find replacement parts for the TR6 frame? Numerous suppliers specialize in Triumph TR6 parts. Check online forums and clubs to find reputable suppliers. Some popular options include Moss Motors, Victoria British, and Rimmer Bros.
3. Can I repair a TR6 frame myself, or should I hire a professional? While some minor repairs can be performed by experienced DIYers, complex repairs, especially welding, should be handled by a professional with the necessary skills and equipment. Frame repair is a critical safety issue, and it’s essential to ensure the work is done correctly.
4. How can I prevent rust on my TR6 frame? Regular inspections, prompt rust removal and treatment, and applying a protective coating, such as undercoating or rust-inhibiting paint, are essential for preventing rust. Storing the car in a dry environment and avoiding driving in harsh weather conditions can also help.
5. What are the signs that my TR6 frame needs restoration? Visible rust, especially in critical areas like suspension mounting points and floor pans, is a primary indicator. Cracks, distortion, and soft spots on the frame are also warning signs. Check the frame regularly and consult a professional if you have any concerns.
