XLR/TRS Combo Jack: The Game-Changing Connector Musicians Swear By

In the world of audio, where signal clarity and reliability reign supreme, the humble connector plays a pivotal role. While XLR and TRS connectors have long been staples in the musician’s toolkit, the XLR/TRS combo jack has emerged as a true game-changer. This versatile connector, often found on preamps, audio interfaces, and mixing consoles, streamlines connectivity and offers unparalleled flexibility. This article dives deep into the XLR/TRS combo jack, exploring its benefits, applications, and why it has become a must-have for modern musicians.

What Exactly is an XLR/TRS Combo Jack?

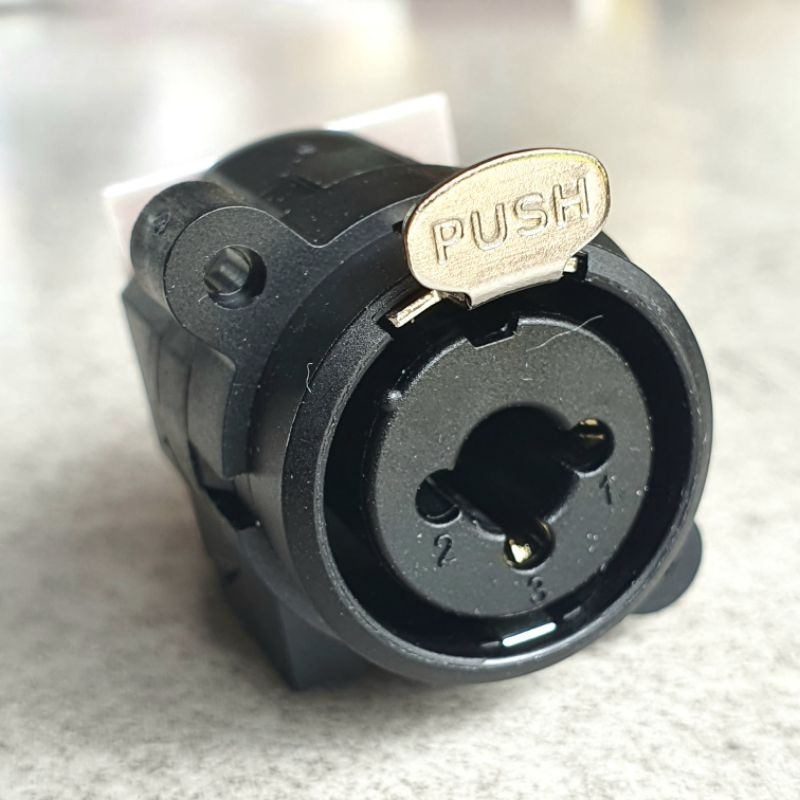

The XLR/TRS combo jack is a single input or output connector that accepts both XLR (XLR = eXternal Line Return) and TRS (TRS = Tip, Ring, Sleeve) connectors. It cleverly combines the functionality of two separate jacks into one, saving space and simplifying connections. Visually, the combo jack typically features a circular opening with three pins (for XLR) surrounded by a 1/4" opening (for TRS).

Understanding the Benefits: Why Musicians Love the Combo Jack

The rise in popularity of the XLR/TRS combo jack is directly attributable to its significant advantages for musicians:

• Space Saving: Consolidating two connectors into one frees up valuable real estate on audio equipment, making for a cleaner and more organized setup.
• Versatility: The ability to accept both XLR and TRS cables provides incredible flexibility. You can connect microphones (XLR) and line-level instruments like keyboards, guitars, and synthesizers (TRS) to the same input.
• Simplified Connections: Fewer jacks mean fewer cables and less potential for confusion, especially during live performances or in a studio setting.
• Reduced Clutter: A cleaner back panel or front panel leads to a more efficient workflow and allows for easier troubleshooting.
• Cost-Effective: In some cases, equipment manufacturers can provide multiple connection options at a lower cost, which can lead to lower prices for the end user.

Decoding the Functionality: XLR vs. TRS in the Combo Jack

Understanding how the XLR and TRS signals are handled within the combo jack is crucial for optimal use.

• XLR Input: When an XLR cable is plugged in, the combo jack functions as a standard XLR input. It typically handles balanced signals, which are less susceptible to noise and interference, making them ideal for microphones and other low-level audio sources.
• TRS Input: Inserting a TRS cable into the combo jack typically provides a line-level input. TRS cables can carry either balanced or unbalanced signals, depending on the equipment and how it is configured. They are commonly used for instruments, effects processors, and other line-level devices.

Practical Applications: Where You’ll Find the Combo Jack

The XLR/TRS combo jack is a ubiquitous component in modern audio equipment. Here are some common applications:

• Audio Interfaces: Many audio interfaces feature combo jacks on their inputs, allowing musicians to connect both microphones and instruments directly to their computers.
• Preamplifiers: High-quality preamps often utilize combo jacks to accommodate a wide variety of signal sources.
• Mixing Consoles: Combo jacks are frequently found on the input channels of mixing consoles, providing flexibility for live sound and studio recording.
• Keyboard Amplifiers & Guitar Amps: Some combo jacks are used on certain amplifiers with combo inputs to connect various instruments.

Troubleshooting Common Issues

• No Signal: Ensure the correct cable type (XLR or TRS) is being used for the intended device. Check the gain staging on your preamp or interface.
• Noise or Hum: If using a TRS cable, try a balanced connection if your equipment supports it. Ground loops can also be a culprit; try using a ground lift adapter.
• Phantom Power Concerns: Be mindful of phantom power if using an XLR microphone. Ensure the phantom power is engaged or disengaged appropriately for your microphone’s requirements.

Conclusion: The Indispensable Connector

The XLR/TRS combo jack has revolutionized the way musicians connect their gear. Its versatility, space-saving design, and simplified connectivity have made it an indispensable component in the modern music production and performance landscape. Whether you’re a seasoned audio engineer or a budding musician, understanding the functionality and benefits of the XLR/TRS combo jack is essential for maximizing your audio setup’s potential. This connector is a prime example of how innovation in the details can significantly impact the overall creative process.

Frequently Asked Questions (FAQs)

1. Can I use an XLR cable in a TRS input?

No, you cannot. While the combo jack accepts both, the internal circuitry is designed to recognize and process the signals differently. Using an XLR cable in a TRS input may result in no signal or a damaged signal.

2. Can I use a TRS cable for microphones?

Technically, yes, but it’s not ideal. Microphones typically require a balanced XLR connection for optimal performance and noise rejection. While some microphones can use TRS, the signal quality may be compromised.

3. What’s the difference between a balanced and unbalanced TRS connection?

A balanced TRS connection uses three conductors (Tip, Ring, Sleeve) to carry the audio signal and its inverse, which helps to cancel out noise. An unbalanced TRS connection (Tip, Sleeve) only uses two conductors and is more susceptible to interference.

4. How do I tell if my TRS cable is balanced or unbalanced?

The cable itself doesn’t inherently tell you. The type of connection depends on the equipment you’re connecting. If your equipment supports balanced TRS, and you want the benefits of noise reduction, you’ll need to ensure your cable is wired for balanced use (most professional TRS cables are). Check your equipment’s manual for details.
